Q-HC

Product details

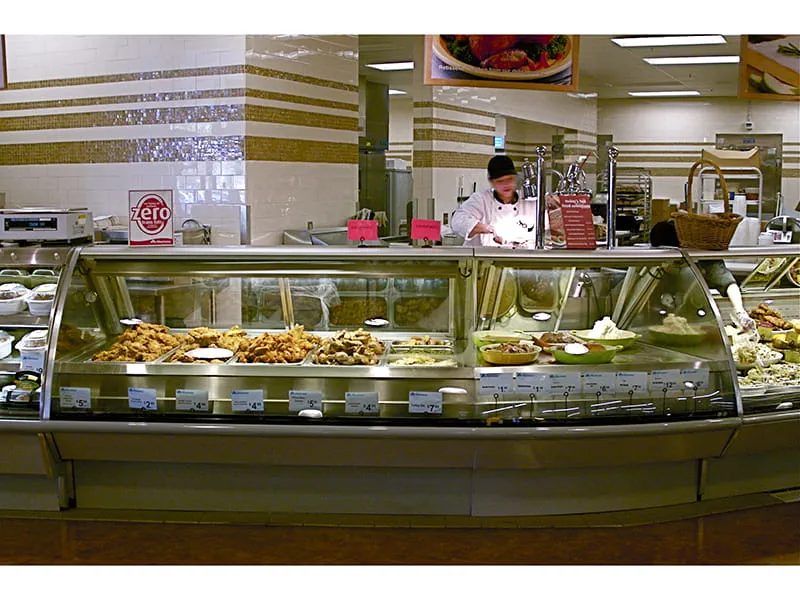

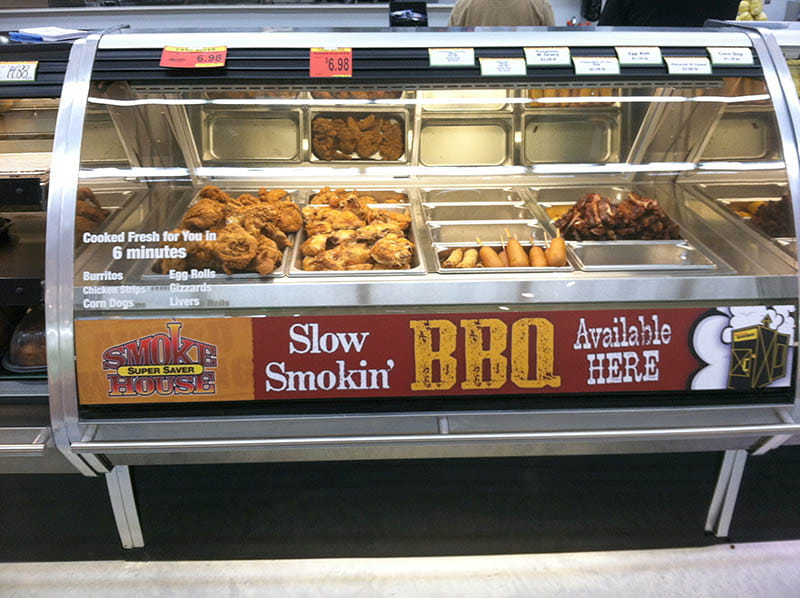

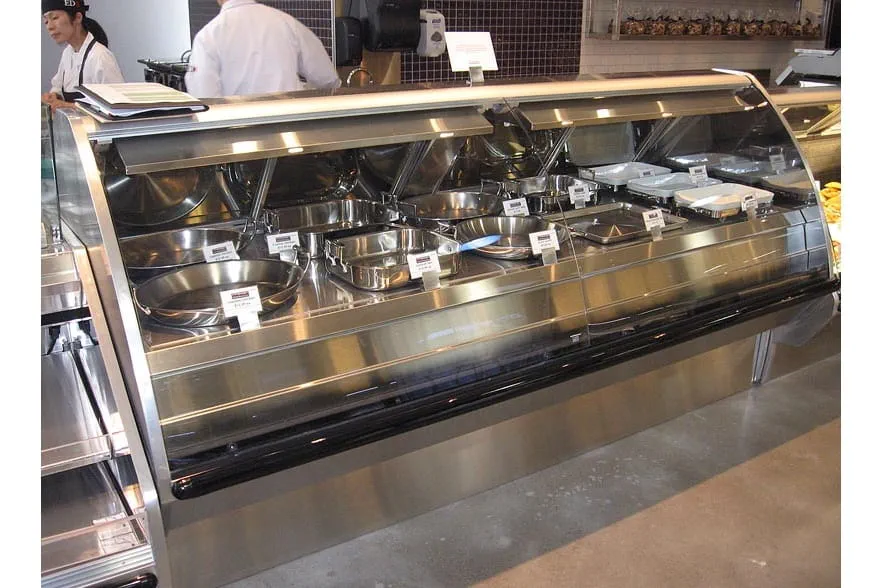

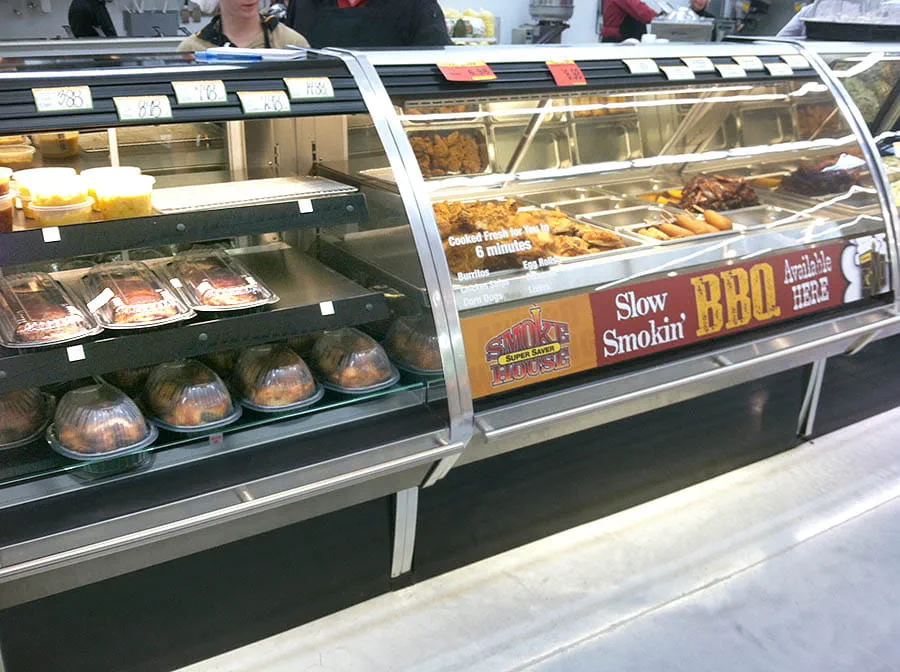

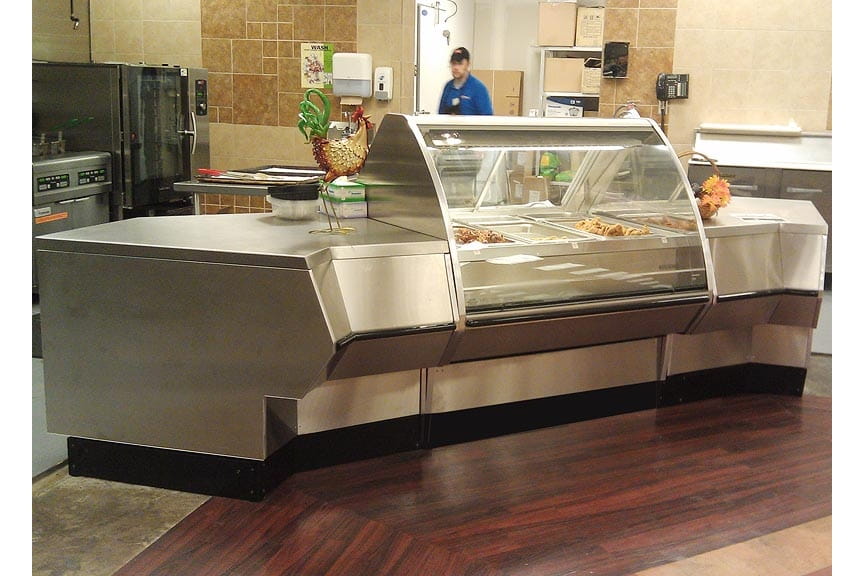

​​​​​Q-HC Service or Self-Service, Single-Deck Hot Merchandiser with Curved Glass



Lengths

  • Service: 4', 5', 6', 8', 10', and 12'
  • Combo: 6', 8', 10', and 12' (Surface Warmer and Hot Well)
  • Self-Service: 4', 5', 6', 8', 10', and 12' (Consult factory for availability)

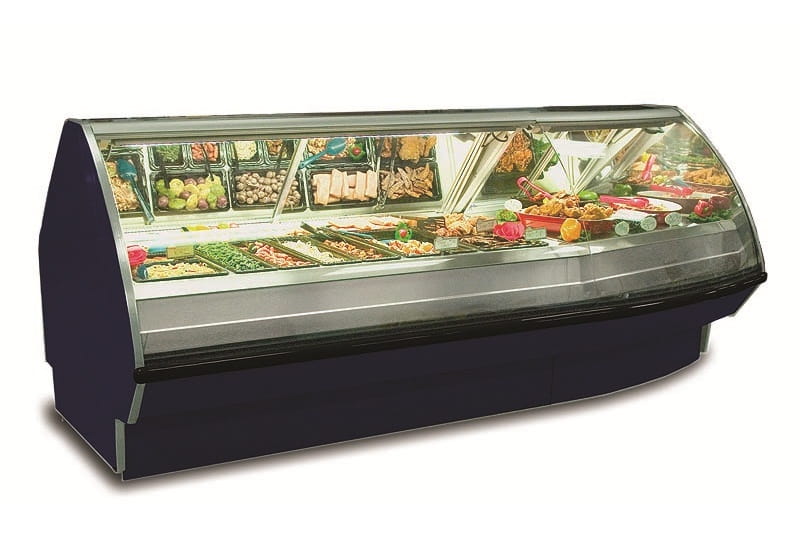

Wedges

  • 22° outside
  • 45° outside (Surface Warmers only)



Features and Benefits

  • Tempered, lift-up curved front clear glass
  • Stainless steel interior and exterior back
  • Stainless steel top
  • Overhead T-5 lighting
  • Dry wells with individual controls (service cases)
  • 27" surface warmers (self-service)
  • Overhead heating elements
  • Adjustable legs
  • Clear glass rear sliding doors
  • Snap-on, stainless steel lower rear panel
  • Please reference color chart for choice of standard
  • Hussmann paint and finish options (www.hussmann.com)



Options* Include

  • Optional base heights to match Q1 or Q3 adjoining cases
  • Thermoplastic wrapping boards
  • Mirrored rear doors
  • Solid end panels with Autobrite Interior
  • View end panels
  • Top mounted scale stand extensions with dedicated
  • scale outlet and Cat 5 scale connections
  • Steam wells with auto-fill and individual controls
  • Convertible dry/steam wells with auto-fill and individual
  • controls
  • Flat surface warmer in lieu of well (service only)
  • Custom lengths and options*
  • Special exterior finishes* (consult your Hussmann sales representative)



Matching Case Lines

  • Single-Deck Service Deli Curved or Straight Glass: Q1-DC or Q1-DS
  • Service Seafood Curved or Straight Glass: Q1-FC or Q1-FS
  • Multi-Deck Service Deli Curved or Straight Glass: Q3-DC or Q3-DS
  • Multi-Deck Self-Service: Q3-SS or Q4-SS
  • Multi-Deck Self-Service Front with Service Prep Top: Q3-SP



* Some optional features may need to be certified by UL, NSF, and/or other 3rd party certification agencies. Contact Hussmann for verification or questions for availability.

† Only lighting configurations that are compliant with the U.S. Dept. of Energy (DOE) 2012 regulation are available for sale for use in the U.S.A.

Case Department Bakery
Case Function Self-Service
Case Temperature Dry
Case Type Q Series, Single-Deck
