RLN-W, RLN-WE

microDS Self-Contained, Narrow Merchandiser

Product Details

Self-Contained Propane R-290 Natural Refrigerant Merchandiser Narrow Reach-In with Innovator Doors for Frozen Food Applications.

Merchandisers available in 2, 3, 4 and 5 doors.

Key Features

The merchandiser includes several innovative features designed for efficiency and sustainability. It uses the environmentally friendly R-290 hydrocarbon refrigerant, which has zero ozone depletion potential (ODP) and a Global Warming Potential (GWP) of 3. The unit is equipped with 18-, 20-, and 22-inch shelves for versatile flat merchandising. Its water-loop system operates efficiently between 50° and 115°F inlet water temperatures. For easy maintenance, the fan plenums can be detached from the coil to clean the case bottom. Additionally, the CoreLink controller provides remote performance monitoring.

  • Environmentally Friendly Refrigerant: R-290 hydrocarbon with zero ODP and a GWP of 3.
  • Versatile Shelving Options: Available with 18-, 20-, and 22-inch shelves for flat merchandising.
  • Efficient Water-Loop System: Operates between 50° and 115°F inlet water temperatures.
  • Easy Maintenance: Detachable fan plenums for easy cleaning of the case bottom.
  • Case Monitoring: CoreLink controller for remote performance monitoring.



 RLN-W

 RLN-WE

 These models have a charge of 5.3oz (150g)  These models have an increased charge of up to 10.6oz (300g)

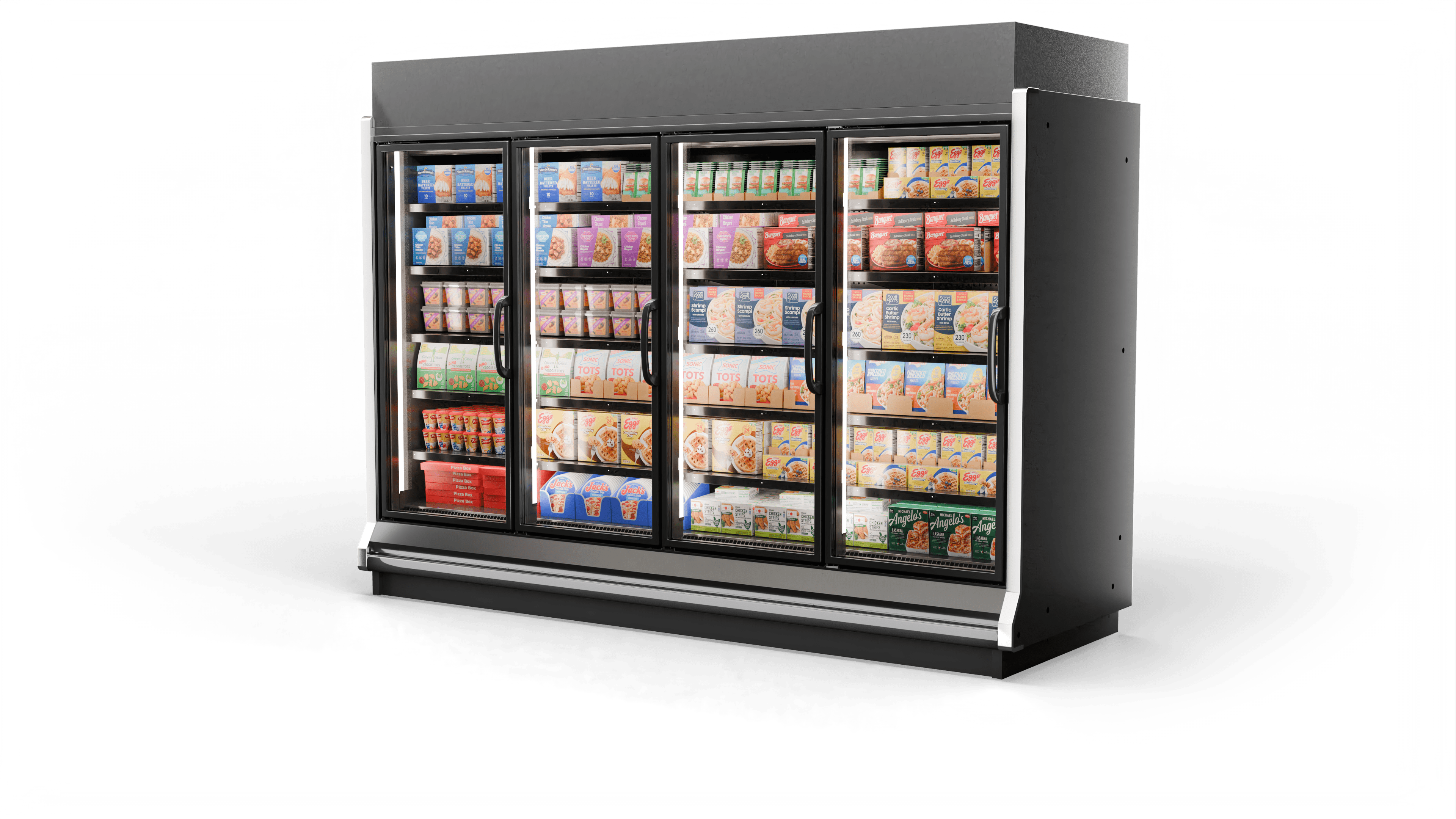

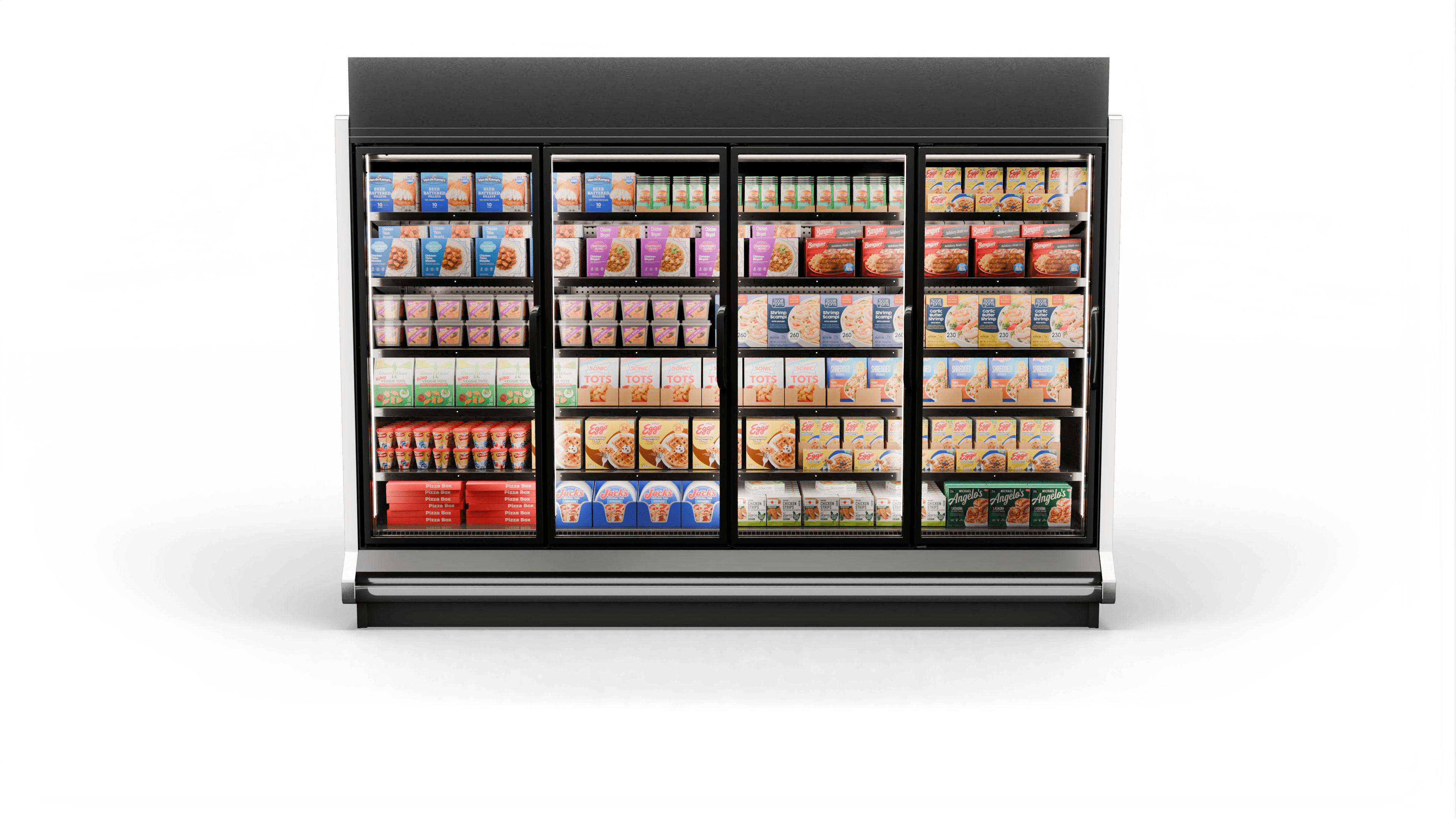

rl-w-rendering-right-facing-with-products-image rl-w-rendering-left-facing-with-products-image
 Case Models
 Doors
 Length
 Case Models
 Doors
 Length
 RLN2W  2-Door  61 7/8 (1,571 mm)  RLN2WE  2-Door

 61 7/8 (1,571 mm)

 RLN3W  3-Door  92 1/4 (2,345 mm)  RLN3WE  3-Door  92 1/4 (2,345 mm)
 RLN4W  4-Door  122 3/4 (3,118 mm)  RLN4WE  4-Door  122 3/4 (3,118 mm)
 RLN5W  5-Door  153 1/4 (3,892 mm)  RLN5WE  5-Door  153 1/4 (3,892 mm)
Key Features:
  • 3 Compressors
  • Low refrigerant charge
 Key Features:
  • 1 Compressor
  • Increased refrigerant charge volume for higher efficiency
